0.1Hz Cable Tester High Voltage Vlf Hipot Instruments30KV 40KV 50KV 60KV 80KV

Name: 01Hz Cable Tester High Voltage Vlf Hipot Instruments30KV 40KV 50KV 60KV 80KV
Brand: Huaying
Price: 1 USD

China 0.1Hz Cable Tester High Voltage Vlf Hipot Instruments30KV 40KV 50KV 60KV 80KV wholesale

Place of Origin : Wuhan Hubei China

Brand Name : Huaying

Certification : ISO

Model Number : VLF AC Hipot Tester

MOQ : 1 Set

Price : Negotiable

Packaging Details : Wooden Case

Delivery Time : 7 Working Days

Payment Terms : T/T L/C

Supply Ability : 200 sets per month

Customize service : Provided

Warranty : 1 year free and lifelong maintenance

VLF Cable Tester Type : Portable

Usage : VLF Cable Tester

Application : Power cable and generator insulation test

Contact Now

0.1Hz Cable Tester High Voltage Vlf Hipot Instruments30KV 40KV 50KV 60KV 80KV

1.Product Name:

Very Low Frequency Tester

2. Specifications:

1. Input: 220 ± 10% Volts AC, 50/60 Hz, single phase.
2. Output-Voltage. 60KV
3. Output frequency: 0.1Hz, 0.05Hz, 0.02Hz.
4. Stability of frequency: Fluctuation < 0.5%
5. Measurement accuracy: ± 3%.
6. Positive and negative voltage peak errors: ≤ 3%.
7. Voltage waveform distortion: ≤ 5%

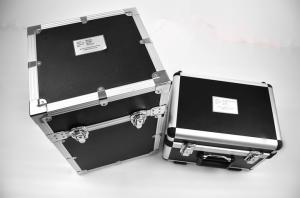

8. Construction: In two units: Controller and Booster...
9. Ambient conditions of use: Temperature Indoor and outdoor: -10ºC to + 50ºC.
10. Humidity: ≤ 85%

3. Models:

Type	Output Voltage/Current	Load Capacity	Control Unit		Booster		Fuse Tube
Type	Output Voltage/Current	Frequency/Capacitance	Dim. (cm)	Wt (kg)	Dim. (cm)	Wt (kg)	Fuse Tube
VLF-30/1.1	30KV/20mA	0.1Hz ≤ 1.1uF 0.05Hz ≤ 2.2uF 0.02Hz ≤ 5.5uF	28× 37× 22	4	33× 18× 34	25	5A
VLF-40/1.1	40KV/30mA	0.1Hz ≤ 1.1uF 0.05Hz ≤ 2.2uF 0.02Hz ≤ 5.5uF	28× 37× 22	4	35× 20× 36	35	6A
VLF-50/1.1	50KV/40mA	0.1Hz ≤ 1.1uF 0.05Hz ≤ 2.2uF 0.02Hz ≤ 5.5uF	28× 37× 22	4	37× 24× 39	45	7A
VLF-60/1.1	60KV/50mA	0.1Hz ≤ 1.1uF 0.05Hz ≤ 2.2uF 0.02Hz ≤ 5.5uF	28× 37× 22	4	33× 18× 34 33× 18× 34	25+25	10A
VLF-70/0.5	70KV/55mA	0.1 Hz, ≤ 0.5µ F 0.05Hz, ≤ 1.0µ F 0.02Hz, ≤ 2.5µ F	28× 37× 22	4	33× 18× 34 35× 20× 36	25+35	10A
VLF-80/0.5	80KV/60mA	0.1 Hz, ≤ 0.5µ F 0.05Hz, ≤ 1.0µ F 0.02Hz, ≤ 2.5µ F	28× 37× 22	4	33× 18× 34 37× 24× 39	25+45	12A

4. Safety Features:

1. Short circuit protected.
2. Status display of all important safety functions and messages.
3. Safe, easy to use operation with emergency off and key switch lock-out.
4. Fully integrated discharge circuit to safely ground the DUT after testing.
5. Zero start interlock.
6. Zero voltage switching.
